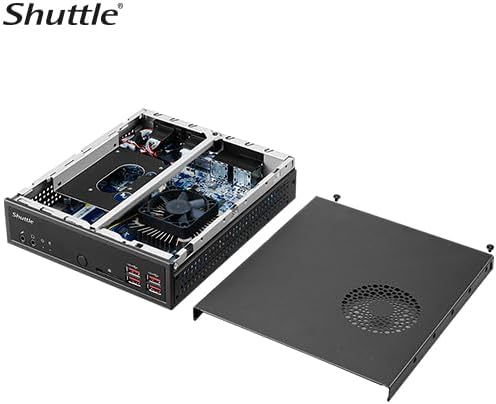

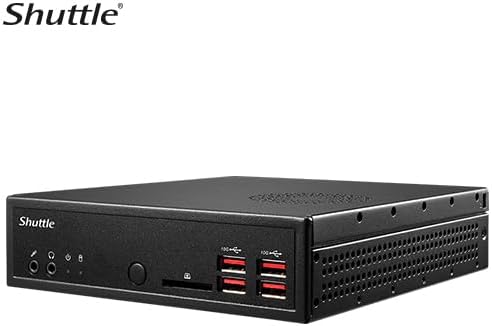

Shuttle XPC Slim DH32UE Mini Barebone PC, Embedded Intel Pentium Gold 7505 CPU, Supports DDR4 SO-DIMM (Max. 64GB), Support EDID Emulation Function, No RAM No HDD/SSD, No OS, VESA Mount Included
Product details
| Management number | 215121322 | Release Date | 2026/04/12 | List Price | $187.60 | Model Number | 215121322 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Shuttle DH32UE series packs Intel’s 11th generation Core processors with the built-in UHD graphics and supports high-speed 3200Mhz DDR4 memory allowing fast transmission bandwidth, doubling graphics performance, and better power efficiency. This model supports up to 4 independent displays via its four native HDMI outputs, with 4K resolution at 60Hz refresh rate to make it ideal for deployment in presenting high quality contents in the central control room, video conferencing and multi-display applications.
- Embedded Intel Pentium Gold 7505 Tiger-Lake-U processor. Supports 4K Resolution and Ultra HD Quad Displays. Supports EDID Emulation Function. No RAM, no HDD/SSD, No OS. Compatible with Windows 11 (64-bit) and Linux (64-bit)
- 2x 260pin Dual Channel DDR4 SODIMM slots, 32GB per DIMM (Max 64GB)
- 4× HDMI 2.0b, Two M.2 slots (1× M.2-2280, 1× M.2-2230), 4× USB 3.2 Gen 2 (10 Gbit), 4× USB 3.2 Gen 1 (5 Gbit), 2× COM, 1× NVMe, 1× SATA 2.5", card reader
- Remote power-on connection, always-on jumper. Wall/VESA mounting option. Optional DIN-Rail and19” rack mount.
- Manufacturer 3-Year and free lifetime technical support.
| Brand | Shuttle |
|---|---|
| Color | Black |
| Model Name | DH32UE |
| Manufacturer | Shuttle |
| Model Number | DH32UE |
| BuiltIn Media | Water Cooling |
| Processor Brand | Intel |
| Processor Speed | 2 GHz |
| Total Usb Ports | 8 |
| CPU Model Number | Pentium Gold 7505 |
| Operating System | Linux, Windows 10, Windows 11 |
| Processor Series | Pentium Other |
| Processor Socket | BGA 1449 |
| Graphics Ram Type | L2 cache |
| Additional Features | 4K Resolution and Quad Displays, Exclusive Cooling Technology, Great Expansion via Dual M.2 Slots, Hardware EDID Emulators, High-Speed Dual Gigabit LAN, Operable in 0-50°C, Rich I/O Connections |
| Hard Disk Interface | Serial ATA-600 |
| Graphics Coprocessor | Intel UHD Graphics |
| Graphics Description | Integrated |
| HumanInterface Input | Keyboard, Mouse |
| Warranty Description | 3 Year Manufacturer |
| Hard Disk Description | HDD, SSD |
| RAM Memory Technology | DDR4 |
| Memory Slots Available | 2 |
| Connectivity Technology | usb_type_a, usb_type_c |
| Graphics Card Interface | Integrated |
| Ram Memory Maximum Size | 64 GB |
| Specific Uses For Product | Business, Multimedia |
| Display Resolution Maximum | 3840x2160 Pixels |
| Total Number of HDMI Ports | 4 |
| Cache Memory Installed Size | 4 |
| Personal Computer Design Type | Barebone |
